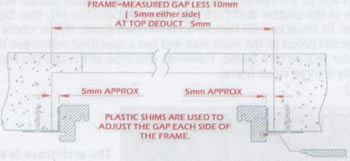

1. Flush

This type of installation of the frame is fitted into the front of a window rebate.  The flush fit will have the feature of an architrave finish.

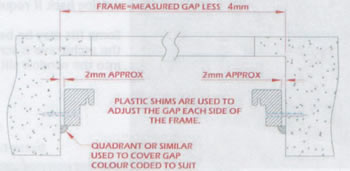

2. Rebate

This type of installation of the frame sits within the recess but in front of window handles.  Note the quadrant or similar beading to cover the gap and prevent mastic.

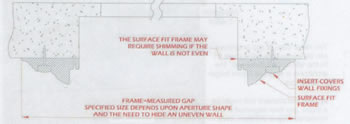

3. Surface

This type of installation of the frame is mounted to the surface of the recess.  The frame is also an architrave finish.

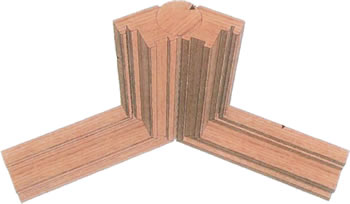

4. Bay System

Our pay pole shutter design allows adjoining shutter panels to meet evenly at the bay pole.  It does not matter what shape or size you have our system will take care of them all.
